Quick answer for the job site: Rectified tile has all edges mechanically finished to a more precise facial dimension, so it can run a tighter joint. Calibrated (non-rectified) tile is sorted to a caliber range, so it needs more joint to absorb size variation. On long-format tile in an offset pattern, ANSI A108.02 sets the average minimum joint at 1/8" for rectified and 3/16" for calibrated, plus the tile's actual edge warpage. Neither edge type fixes a wavy Florida slab — flatness, mortar coverage, offset, and a leveling system do.
This is the installer's version of the decision. If your client is still choosing looks, send them to our homeowner large-format tile guide first. For slab-specific substrate work on big porcelain, read our Pro post Large-format porcelain over Florida slabs: what actually works. Stock up from large-format tile, spacers & leveling systems, thinset mortar, and self-levelers.
Rectified vs calibrated: what the edge actually tells you
ANSI A137.1 defines rectified tile as tile that has had all edges mechanically finished to achieve a more precise facial dimension. Calibrated tile is sorted to meet a manufacturer's stated caliber range. Practically:
- Rectified: square, sharp edges; tighter size tolerance; reads clean with narrow joints. Less forgiving of lippage because there is no soft edge or wide joint to hide a step.
- Calibrated / non-rectified: slightly softened or pressed edges; more size variation box to box; wants a wider joint and more attention to the caliber/shade code on the cartons.
- What it does not tell you: flatness of the face. Warpage is a separate property — a rectified tile can still have edge or diagonal warpage, which is why the joint and offset rules below add warpage on top of the minimum.
Always pull the edge type from the product page or manufacturer sheet — do not guess from the photo. Same-series examples on our floor right now:
| Product | Edge (TOA catalog) | Size | PEI (TOA catalog) | Price each, at time of publish |
|---|---|---|---|---|

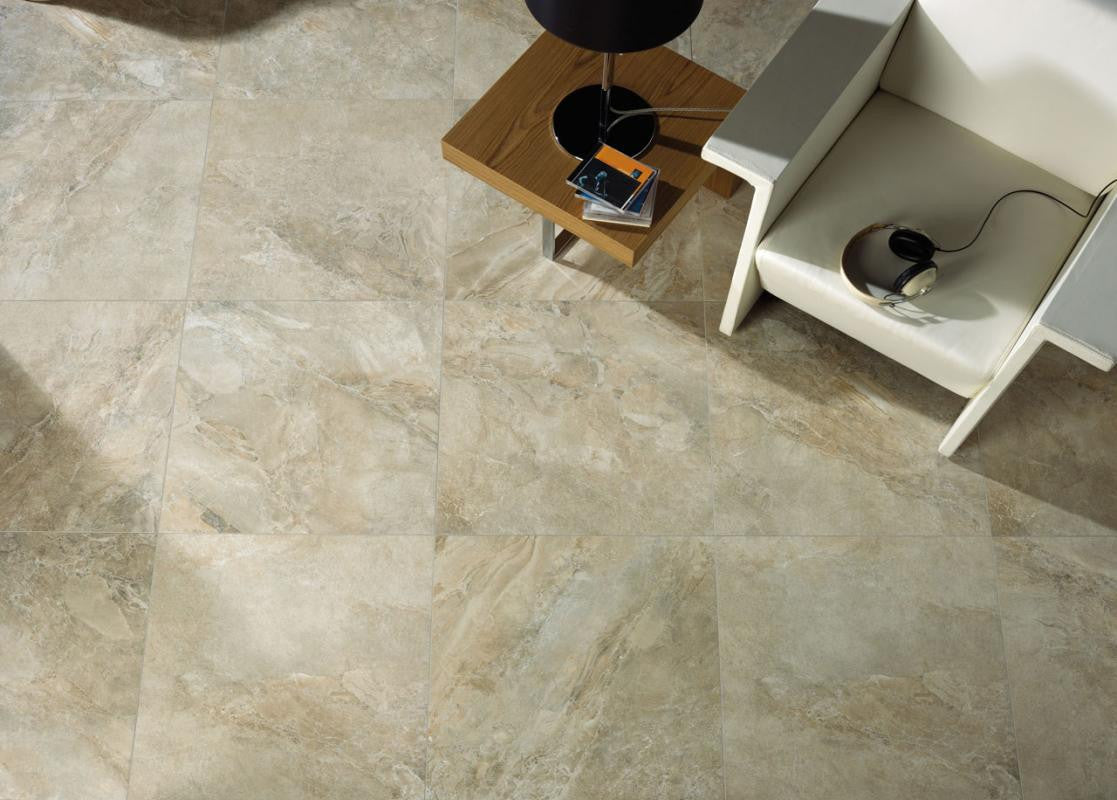

| Icaria Beige 24x24 | Rectified | 24x24 | 4 | $12.17 per piece |
| Icaria Beige 12x24 | Non-rectified | 12x24 | 4 | $7.93 per piece |
| Helsinki Haya 8x48 | Rectified | 8x48 plank | 4 | $7.20 per piece |
| Louvre Taupe 10x40 | Non-rectified | 10x40 plank | 4 | $7.24 per piece |
| Marvet Classic 24x48 | Rectified | 24x48 | 3 | $25.50 per piece |
The Icaria Beige pair is a useful bid conversation: same look, but the 24x24 is rectified and the 12x24 is not, so they should not share a joint spec. Order a one-piece sample from each product page (Order a Sample) and dry-lay both edges side by side before you commit to a joint width.
Joint width: the numbers you can defend
These are the ANSI A108.02 workmanship figures as published by the TCNA and quoted by the Ceramic Tile Education Foundation (CTEF):
- Three-times rule (4.3.8): the actual grout joint must be at least three times the actual variation in facial dimensions of the tile supplied. Example from the standard: 1/16" total variation means a minimum 3/16" joint.
- Absolute floor (4.3.8): in no circumstance shall the grout joint be less than 1/16".
- Running bond / brick with any side over 15" (4.3.8.1): average minimum 1/8" for rectified, 3/16" for calibrated, increased by the edge warpage on the longest edge of the tile actually being installed. The standard's example: rectified tile with 1/32" edge warpage needs a 5/32" average joint.
Job-site translation: measure a handful of pieces from different boxes before you write the joint into the contract. If the client wants "the thinnest joint possible" on a calibrated plank, show them the three-times math and get the joint width approved in writing — ideally on a grouted mock-up.
Match the clip to the joint. Leveling clip straps double as the spacer, and they are sold by joint size. A 1/16" or 1/32" clip will not give you the 1/8" minimum above on a running-bond rectified plank. For a 1/8" joint, the PLS Red 1/8" leveling clips, 250-pack ($27.49 each, at time of publish) are marked for 1/8" grout size and require the separate PLS reusable wedges, 250-pack ($34.49 each, at time of publish).
Lippage tolerance: what ANSI allows (and why clients won't accept it)
ANSI A108.02 section 4.3.7 defines lippage as the difference in elevation between edges of adjacent tile. For pressed floor and porcelain tile with a joint from 1/16" to less than 1/4", the allowable lippage is 1/32" — added to the actual warpage of the tile supplied (as permitted by ANSI A137.1). Wider joints get a larger allowance in the same table.
Two things installers should take from that:
- The allowance stacks with warpage. A tile at the edge of its warpage tolerance can produce visible, standard-compliant lippage. The TCNA's own lippage paper warns that the theoretical maximum on large tile is not commercially acceptable.
- Raking light is the real inspector. Florida sliders and long hallways throw low-angle sun across the floor. Rectified edges with tight joints show every step. Set expectations before the job, not at the walkthrough.
Offset: 33% is the rule on long tile
ANSI A108.02 4.3.8.2 limits running bond and other offset patterns on long tile to an offset of 33% or less, unless the tile manufacturer specifies otherwise. A larger offset requires the specifier and owner to approve a mock-up and the resulting lippage. The reason is warpage: most long tiles are slightly crowned, and a 50% brick lands the low ends of two tiles against the high center of the neighbor. (The published editions quoted by CTEF and TileLetter put the trigger at sides over 15" or 18"; check the current Handbook and the manufacturer sheet.)
Plank-look porcelain like the Helsinki Haya 8x48 (rectified) and Louvre Taupe 10x40 (non-rectified) is where offset arguments start. Lay out the stagger before you mix mortar, and plan the cut-off reuse into your waste factor — tighter offset rules on long planks change how many offcuts you can use.
Florida slabs: flatness first, then the leveling system
For tile with at least one edge 15" or longer, ANSI A108.02 (4.1.4.3) requires the substrate to vary no more than 1/8" in 10' and no more than 1/16" in 24" from the required plane, measured from the high points. That tolerance applies before you set tile — rectified or not.
- Check with a 10' straightedge. Circle lows, mark highs. CTEF's guidance: grind highs and fill lows with a cementitious patch or self-leveling underlayment over the same maker's primer — and don't use thinset or large-and-heavy-tile mortar to flatten the floor.
- Prep products in stock: SikaLevel-325 self-leveling underlayment, 55 lb ($34.99 each, at time of publish), TEC 567 contractor-grade SLU, 50 lb ($38.49 each), and TEC 330 Feather Edge skim coat, 10 lb ($23.95 each). Use the primer and thickness limits on each product's data sheet.
- Leveling systems control lippage during set; they don't flatten a slab. Clips and wedges hold adjacent edges in plane while mortar cures. If the slab is out of tolerance, clips just pull the tile into the wave.
- Mortar and coverage. ANSI A108.5 calls for at least 80% contact in dry interior areas and 95% in exterior and interior wet installations, with full support at corners and edges. On long tile, use a mortar rated for large and heavy tile — for example TEC PermaFlex 300 LHT, 50 lb ($18.49 each, at time of publish) or SikaTile 400 LHT Pro Set, 50 lb ($16.99 each) — with a trowel sized to hit coverage, such as the Pro Series 1/2" x 1/2" notched trowel ($12.69 each). Pull a tile early to confirm.
Grout choice follows the joint
Once the joint width is fixed, pick a grout rated for it. Check the joint range printed on the bag: sanded grouts such as TEC Silverado sanded grout, 25 lb ($16.49 each, at time of publish) target wider joints, while high-performance options like TEC 550 Power Grout, 25 lb Silverado ($67.99 each) list their own range. Browse the full grout collection. For wet-area chemistry, see epoxy vs cement grout; for color against rectified edges and tight joints, see the Florida grout color guide.
Installer checklist: rectified vs non-rectified on a Florida slab
- Confirm the edge type and size on the product page or spec sheet; note caliber and shade codes on every carton.
- Measure size variation across several boxes; apply the three-times rule and the 1/8" / 3/16" running-bond minimums, plus warpage.
- Get the joint width and offset approved in writing; build a grouted mock-up for anything tighter or over 33%.
- Straightedge the slab: 1/8" in 10' and 1/16" in 24" for tile with an edge 15" or longer. Grind and patch or pour SLU — never flatten with thinset.
- Use an LHT mortar, back-butter, and pull tiles to confirm 80% dry / 95% wet and exterior coverage.
- Pick clips that match the joint (1/8" clips for a 1/8" joint) plus the matching wedges or caps from the same system.
- Choose grout rated for the joint width; confirm the color on a sample board.
FAQ
Can rectified tile be installed with a 1/16" joint?
Only if the three-times rule allows it for the actual tile supplied, and never below 1/16". In a running bond or brick pattern with any side over 15", ANSI A108.02 sets an average minimum of 1/8" for rectified tile, plus edge warpage.
What is the minimum grout joint for non-rectified (calibrated) tile?
At least three times the actual size variation of the tile supplied. In a running bond pattern with any side over 15", the average minimum is 3/16", plus edge warpage.
Does a leveling system eliminate lippage?
It controls lippage between adjacent edges while the mortar cures. It does not correct an out-of-flat slab or a heavily warped tile — fix flatness first.
How flat does a slab need to be for large-format tile?
For tile with an edge 15" or longer, ANSI A108.02 calls for no more than 1/8" in 10' and 1/16" in 24" from the required plane, measured from the high points.
Is a 50% offset ever OK on long tile?
Only when the tile manufacturer specifies it, or when the specifier and owner approve a mock-up and the resulting lippage. Otherwise keep the offset at 33% or less.
Trade desk and showrooms
Pull rectified and non-rectified stock, clips, wedges, LHT mortar, SLU, and grout in one trip at Tile Outlets of America — showrooms in Tampa, Fort Myers, and Sarasota, plus nationwide shipping. Call 1-844-TOA-TILE (+1-844-862-8453) for trade pricing and availability on your job's SKUs.
Sources: ANSI A108.02 sections 4.1.4.3, 4.3.7, 4.3.8, 4.3.8.1, and 4.3.8.2 and ANSI A108.5 2.2.3, as quoted by the Ceramic Tile Education Foundation (ceramictilefoundation.org), Stone World, and TileLetter; ANSI A137.1 definition of rectified tile as quoted by CTEF; TCNA, "Warpage, Lippage, and Related Challenges." Prices and edge/PEI values are from the TOA catalog at time of publish and can change — check the live product page.
